Background: Chin implants are the most common form of aesthetic jaw augmentation, both historically and currently. Despite their effectiveness at the front edge on the jaw where they are placed, they affect less than one-third of the jawline surface area. Thus it is important for patients to understand what they can and can not. Patients often ask if getting a chin implant will improve their jawline…which historically probably meant the chin but today often means the jawline behind the chin.
As a result of their limited jawline augmentation effect, it is mot uncommon today for patients to ‘graduate’ to a more complete lower facial effect. This could be done with the use of standard jaw angle implants or a total or wrap around jawline implant. If it is the latter a 3D CT scan is needed to design and fabricate the jawline implant. In so doing the the existing chin implant can be seen like never before. Its style, size, position on the bone and the biologic response of the bone to the implant can be fully appreciated

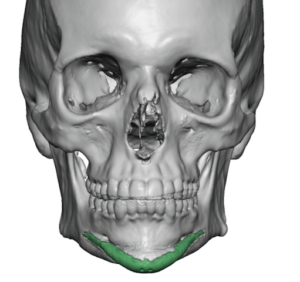

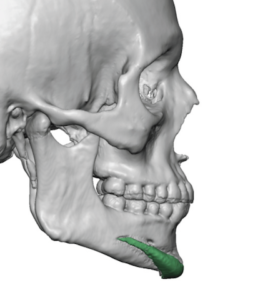

Case Study: This young male had a history of a prior chin implant of which he was never happy. It didn’t seem to provide enough projection, made his chin vertically longer and the wings of the implant felt high. In choosing a custom jawline implant replacement the 3D CT scan showed an upside chin implant which accounted for most of what he felt about its aesthetic result.

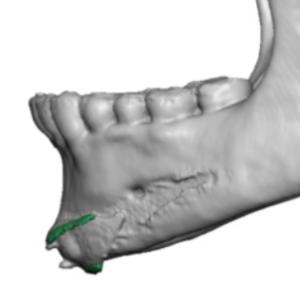

Closer inspection of the scan shows classic limited implant bone imprinting and numerous areas of bone overgrowth around the implant. (bone overgrowth highlighted in green)

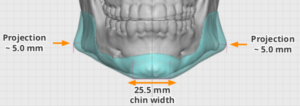

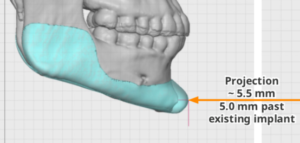

The custom jawline implant design made was based on what was not aesthetically liked about the existing chin implant effects and making those additions/subtractions….as well as having it cover the entire jawline.
Removal of the chin implant was done through the existing submental incision. During removal bone spikes were seen grown into the holes of the implant as well as around its edges. These bone in/overgrowths needed to be removed so the custom jawline implant could be properly seated.
When designing and placing custom jawline implants there is a frequent opportunity to see how the bone has responded to the prior chin implant. Always seen is a limited underlying bone resorption (imprinting) and surrounding bony overgrowths. (bone remodeling) This demonstrates an expected response to the placement of a material on the bone which expands the natural biologic tissue boundaries. Once the tissues have been released from this pressure (imprinting) the body responds by trying to heal over it. (bony overgrowths. All of these 3D CT scan and intraoperative findings refute the historic and incorrect premise that chin implants cause progressive bone erosion.
Case Highlights:
1) Patients with prior/indwelling chin implants make up over one-third of custom jawline implant surgeries.
2) The required preoperative 3D CT scan needed for custom facial implant designing provides unparalleled observations of chin implant placements/positioning.
3) Removing the existing chin implant to place the custom jawline implant also provides direct inspection of their bony biologic response to it.
Dr. Barry Eppley
Indianapolis, Indiana
