The eyelids provide aesthetically important shape to the eye area and has a greater influence on the appearance of this part of the face than the eyeball itself. Their horizontal coverage of the eyeball creates how much of the eyeball is seen particularly scleral show. The amount of scleral show determines how wide open the eyes appear as well as some form of expression. Notice how different the eyes appear when the outer corner of the eyes are down slanting vs upturned.

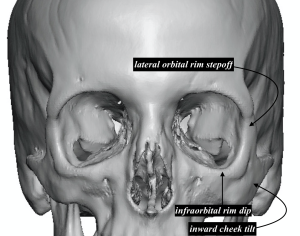

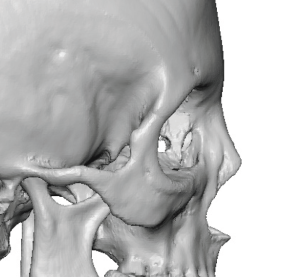

The horizontal axis of the lower eyelid  is highly influenced by the shape of the infraorbital bone below it. Having seen many 3D CT scans for infraorbital rim implants when a slopping lower eyelid exists with a low outer eye corner position there will be a noticeable dip in the lateral infraorbital rim. To no surprise there is an anatomic relationship  between the shape of the lower eyelid and the bone underneath it. This has been known in hemifacial and Treacher-Collins craniofacial deformities for over fifty years. Thus it should be no surprise that it exists in aesthetic eyelid deformities as well.

This lateral infraorbital rim dip often occurs because there is a flatter or more inward tilt to the cheek bones. This may make a visible lateral orbital rim step off below the fronto-zygomatic suture line. While lateral orbital stepoffs may occur in males due to their increased brow bone projection they are not usually seen in females unless the cheek bone complex has an inward tilt.

The relevance of understanding these bony correlations with the external lower lid-cheek appearance is that it provides an important element to improve when corrections are undertaken. In very mild aesthetic lid deformities the bony deficiencies may be left alone and can be overcome with soft tissue procedures. (lateral canthoplasties, lower lid spacer grafts) But as the lower lid position worsen (increased scleral show) addressing the bone support has value. This explains why the addition of standard tear trough implants to the soft tissue procedures is so commonly used today when sagging lower eyelids are being treated.

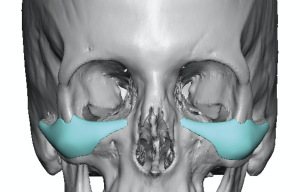

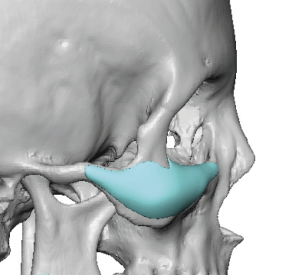

While standard tear trough implants have their role custom infraorbital implants provide a much better bony correction. They not only can effectively raise up the level of the most deficient part of the infraorbital rim but can also correct the inward cheek tilt if present. More common than not the custom infraorbital-malar implant provides the most push or support for the lower eyelid.

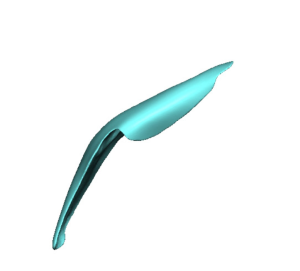

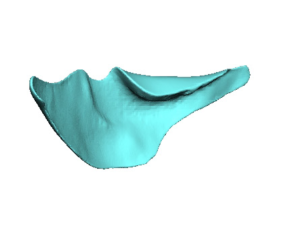

One of the important features of the custom infraorbital or infraorbital-malar implant that differentiates it from the standard tear trough implant is that it saddles the infraorbital rim. By doing so it can increase the height of the infraorbital rim and change its shape. Such an underlying bone shape change can help support an elevated lower eyelid change.

Because the custom infraorbital-malar implant saddles the bony rim its placement is best done through a lower eyelid incision. The lid incision does not have to be very long to get the entire infraorbital rim and adjacent malar  area dissected out for implant placement.
