Revisional Setback Bony Genioplasty Case Study

A revision bony genioplasty is a secondary surgery to correct problems from a prior sliding genioplasty. It’s done when the first chin operation didn’t heal, position, or look the way it was intended—or when changes over time create new issues.

Common reasons for revision

• Malposition: chin too far forward/back, too high/low, or asymmetric
• Nonunion or malunion: the bone didn’t heal properly
• Contour irregularities: step-offs, notching, visible edges
• Over- or under-projection
• Hardware issues: plate/screw visibility or discomfort
• Soft-tissue problems: ptosis, chin pad asymmetry, mentalis muscle dysfunction

What revisional bony chin surgery may involve

Depending on the problem, a revision can include:

• Re-osteotomy and repositioning of the chin segment (most common)
• Bone grafting (often corticocancellous) for gaps, resorption, or nonunion
• Plate and screw removal/replacement
• Contour smoothing or reduction
• Adjunctive implant use (select cases) or fat grafting for soft-tissue balance
• Mentalis muscle repair if there’s chin droop

Why revisions are more complex

• Scar tissue and altered anatomy
• Compromised blood supply
• Less bone stock
• Higher need for rigid fixation and grafting
  Because of this, revisions are more technically demanding than primary genioplasties.

Recovery considerations

• Swelling may last longer than after a primary procedure (usually it does not
• Bone healing typically takes 8–12 weeks
• Temporary numbness of the lower lip/chin is common; permanent sensory changes are uncommon but possible
• Soft-tissue refinement can take 3 to 4 months

Key planning factors

• 3D CT imaging is most informative x ray, lateral cephalometric and panorex at a minimum
• Clear goals: functional vs aesthetic vs both
• Determine dimensional bony positional changes needed

Case Study

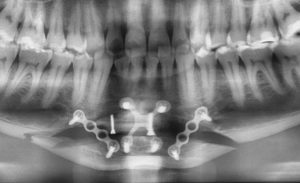

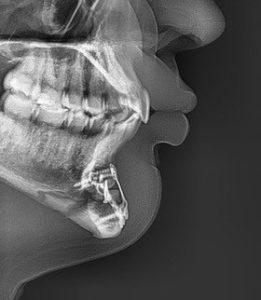

This male had a bony genioplasty with a result that he did not expect or desired. The chin bone had 8mms of vertical lengthening and 4mms of advancement with an interpositional bone graft. The postop x-rays showed the bony change and the amount of fixation  hardware used.What he did not like about the result was the vertical lengthening which he did not ask for or want. This made his chin stick out t00 prominently and disrupted a smooth inferior border jawline. The plan was for vertical setback genioplasty keeping the existing horizontal projection or even a few millemeters more.

Initially all fixation was successfully removed which showed good bony union across the grafted vertical lengthening gap.

Double osteotomy cuts were made to remove the original amount of vertical lengthening and bone ingrowth. The mobilized chin segment was then vertically shortened and advanced 4mms by plate fixation in its new elevated position.

Discussion

In considering revision genioplasties that requires bony repositioning here are the key considerations:

Define the Problem Precisely

Do not plan a revision until you can label it clearly:

Many revisions involve multiple categories.

Osteotomy Strategy

A. Re-osteotomy considerations

• Expect dense scar tissue and altered landmarks
• Osteotomy often must be slightly higher or lower than original cut
• Maintain ?5 mm clearance from mental foramen
• Use guarded saw + osteotomes to protect nerve

B. Segment control

• Mobilize fully — partial mobilization leads to relapse
• Release inferior border scar bands if vertical change planned
• Check passive seating before fixation

Fixation & Bone Grafting

A. Fixation principles

• Rigid fixation is mandatory
• Prefer new titanium plates
• Avoid reusing old screw holes when possible
• Consider dual-plate fixation for:
  • Vertical lengthening
  • Nonunion
  • Large advancements

B. Bone grafting

Indications:

• Nonunion
• Gaps >3–4 mm
• Vertical lengthening
• Bone resorption

Options:

• Autogenous corticocancellous graft (ideal but almost never used)_
• Allogeneic (tissue bank) corticocancellous chips, used in almost all osteotomy cases
• Pack graft tightly into all gaps after plate fixation applied

Revision genioplasties have a high rate of success because the end aesthetic outcome and how to get there is better understand than the primary procedure. Good bony healing typically occurs in a secondary genioplasty as well as the first time.

Dr. Barry Eppley

Plastic Surgeon
